Product name:

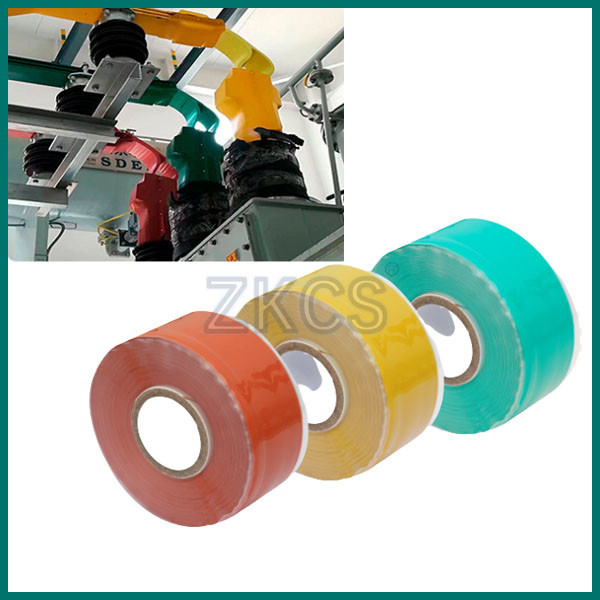

Heat Resistant And Low MOQ Self Adhesive Silicone Tape For Bus Bar
Applications:
For cable and wire connections

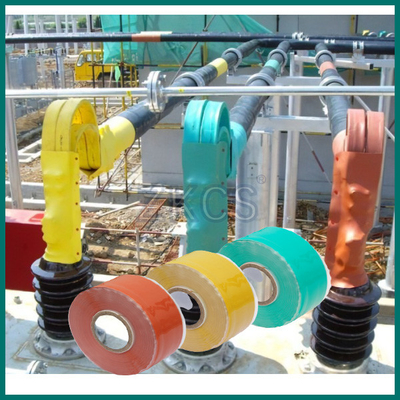

For Bus bar insulation
bus bar bolted connections
Moisture seal for automobile protective,tunnel and aerospace
| Product name |
Length
(±0.05)M
|
Width
(±1.5)mm
|
Thickness
(±0.05)mm
|
Parameters |
| Heat Resistant Silicone Rubber Electrical Tape |
5 |
50 |
0.5 |
See below chart |
| Heat Resistant Silicone Rubber Electrical Tape |
5 |
50 |
0.8 |
See below chart |
Good electrical waterproof tunnel leakage repair tape silicone self fusing tap Technical Parameters:
| No. |
Items |
Test standard |
Unit |
Results |
| 1 |
Hardness |
GB/T 531.1-2008 |
Shores A |
50±10 |
| 2 |
Tensile strength |
GB/T 528-2009 |
Mpa |
≥4.5 |
| 3 |
Elongation at break |
GB/T 528-2009 |
% |
≥350 |
| 4 |
Dielectric coefficient |
GB/T1408.1-2006 |
KV/mm |
≥22 |
| 5 |
Volume resistivity |
GB/T1410-2006 |
Ω.cm |
≥1.3*1015 |
| 6 |
Self-adhesive |
ASTM D2148 |
N/cm |
>3.5 |
| 7 |
Water absorption |
|
% |
<0.9 |
| 8 |
density |
GB/T 20631.2 |
g/cm3 |
<1.5 |
| 9 |
Flame retardant |
grade |
UL-94 |
V0 |
| 10 |
Heat resistant temperature |
|
|
180 |
| 11 |
Withstand voltage |
|
|
15KV |
| 12 |
Color |
|
|
Red, yellow, green etc |
Features:
1: Excellent flame retardant properties
2: Excellent heat resistance characteristics
5: Flexible over wide temperature range
6: Good quality, can be used in 180℃ for long time use.
7: Excellent weather resistance properties
Application:
| No |
Items |
| 1 |
Can be used for high voltage cable end with very good resistance function to electricity arc and tracking, suitable for winding on all kinds of power cable insulation materials. |
| 2 |

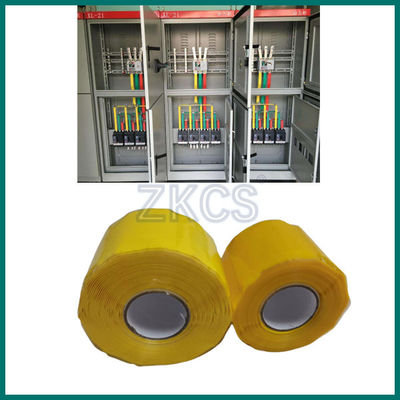

Can be used in insulation protection of electrical cabinets |
| 3 |
Can be applied to thermal insulation class H |
| 4 |
Can be applied to high temperature resistant cable of flame retardant requirement |
